Baer Brakes 14" Extreme+ Front Brake Kit, Red, SDZ
Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/Wilwood C10 Aluminum Modular Pro Spindles (Also fits CPP X10 Spindles)
Overview

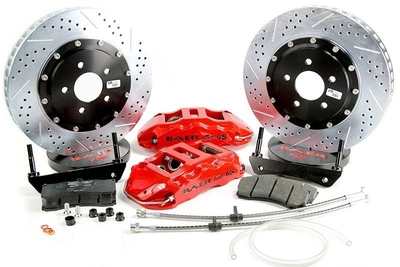

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear Specs
Applications GM C10 Trucks 60-87 Axle Front Brand Baer Brakes Caliper 6S Caliper Color Red Disc Brake Caliper (Front) Piston Quantity 6 Disc Brake Caliper (Front) Type Fixed Disc Brake Pad FMSI Number D1247 Disc Brake Rotor (Front) Construction Vented Disc Brake Rotor (Front) Outside Diameter 14.000 IN Emission Code 6 Export Description Brake Components Fitment Notes w/CPP X10 Spindles w/Wilwood C10 Aluminum Modular Pro Spindles Grade Type Performance Hose Material Stainless Steel Lug Count 5 Lug Min Wheel Dia (verify using template) 18 IN Product Line 14 Inch Extreme+ Product Type 14 Inch Extreme+ Front Brake Kit Prop 65 (C, R or CR) CR Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov Prop 65 - Short Label WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov Prop 65 Yes/No Yes Rotor Thickness 1.250 IN Rotor Type 2-Piece Spindle Type Wilwood C10 Alum Modular Pro Spindles Included No Surface Type Slotted, Drilled & Zinc Plated System Notes Fits Wilwood C10 Aluminum Modular Pro or CPP X10 hub pack spindles. Bolt on hub packs not included Template N117P Title Extreme+ Brake System Front Wheel Lug/Bolt Pattern 5x5.00 UPC 090127853726 Part Number 4301571R Tech Resources - Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
