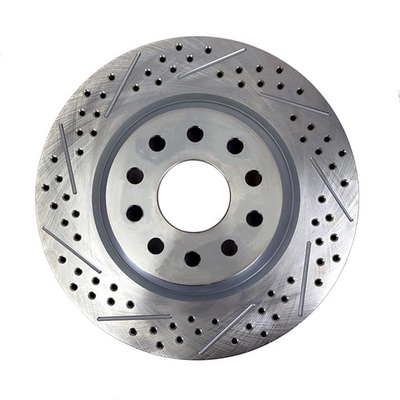

Rtr 1pc 12"x1.020" DBC RH SDZ
12.000" X 1.020", 5x4.50"/5x4.75"BC, 2.780" Register, 1-Piece, Right, Slot Drilled & Zinc-Plated Finish
1-piece, slot, drilled and zinc-plated replacement rotor used in select Baer Brake systems. Note: These rotors are directional and specific to the left or right side of the vehicle. If you are unsure on what rotor you need, please contact our sales department for assistance. Rotors sold individually.
About Baer Brakes
Specs
| ABS Tone Ring Included | No |
|---|---|
| Axle | Right |
| Brand | Baer Brakes |
| Center Hole Diameter | 2.780 IN |
| Construction | Full Cast |
| Directional or Non-Directional Brake Surface | Directional |
| Drum in Hat | Yes |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Material | Cast Iron |
| Nominal Thickness | 1.020 IN |
| Outside Diameter | 12.000 IN |
| Overall Height | 2.406 IN |
| Product Type | 12 Inch 1pc Replacement Rotor |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Circle Diameter | 4.50 IN |
| 4.75 IN | |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Title | Service Parts Replacement Rotors |
| UPC | 844165050001 |
| Part Number | 6929093 |
