14" Pro+ Brake Sys Frt Slvr 60-87 C10
Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/Wilwood C10 Aluminum Modular Pro Spindles (Also fits CPP X10 Spindles)
Overview

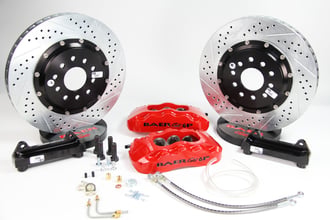

The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
About Baer Brakes
Specs
| Applications | GM C10 Trucks 60-87 |
|---|---|
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6P |
| Caliper Color | Silver |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0731 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 14.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/CPP X10 Spindles |
| w/Wilwood C10 Aluminum Modular Pro Spindles | |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18 IN |
| Product Line | 14 Inch Pro+ |
| Product Type | 14 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.150 IN |
| Rotor Type | 2-Piece |
| Spindle Type | Wilwood C10 Alum Modular Pro |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits Wilwood C10 Aluminum Modular Pro or CPP X10 hub pack spindles. Bolt on hub packs not included |
| Template | Q117P |
| Title | Pro+ Brake System Front |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| UPC | 090127853696 |
| Part Number | 4301570S |
