14" Ext+ Brake Sys Frt Red Mustang II
Fits Ford Mustang II Spindles (Also fits Heidts Mustang II Spindles)
Overview

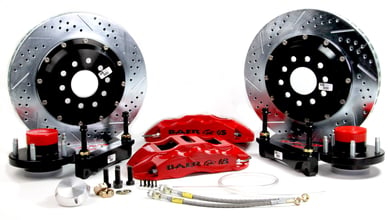

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
About Baer Brakes
Specs
| Axle | Front |
|---|---|
| Brand | Baer Brakes |
| Caliper | 6S |
| Caliper Color | Red |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 14.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Hose Material | Hoses Not Included |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18 IN |
| Product Line | 14 Inch Extreme+ |
| Product Type | 14 Inch Extreme+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250 IN |
| Rotor Type | 2-Piece |
| Spindle Type | Mustang II |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with Ford Mustang II Spindles (Stock & Drop Height), Also Fits Heidts Mustang II Spindles |
| Template | N147P |
| Title | Extreme+ Brake System Front |
| Wheel Lug/Bolt Pattern | 5x4.50/5x4.75 |
| Wheel Stud Size | 1/2-20" x 2.25" |
| UPC | 844165044826 |
| Part Number | 4261339R |
