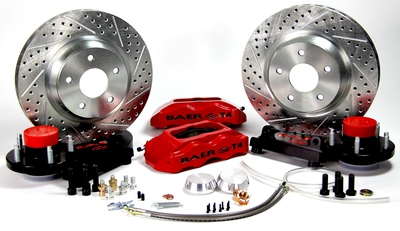

This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels.
Features:
- 2-Piece, 4-Piston, T4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plate Rotor
Specs
| Applications | GM C1500 SUV's 92-99 |
|---|---|
| GM C1500 Trucks 88-98 | |
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | T4 |
| Caliper Color | Silver |
| Disc Brake Caliper (Front) Piston Quantity | 4 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0749 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 13.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/React 2" Drop Spindles |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 IN |
| Product Line | 13 Inch Track4 |
| Product Type | 13 Inch Track 4 Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 IN |
| Rotor Type | 1-Piece |
| Spindle Included | No |
| Spindle Type | React 2" Drop Spindles |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with React 2" drop spindles |
| Template | Q117H |
| Title | Track4 Brake System Front |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | M14-1.50 x 47.5mm |
| UPC | 090127853955 |
| Part Number | 4301618S |
