13" Pro+ Brake Sys Frt Red Wilwood
Fits Wilwood Mustang II Pro Spindles
Baer Brakes 13" Pro+ Front Brake Kit, Red, SDZ, Std. Studs
Fits Wilwood Mustang II Pro Spindles
Part # 4261286RBe the first to write a review
In Stock
Free Shipping - Lower 48 US States
$2,694.95
Starting at $131/mo with Affirm. Check your purchasing power
Overview

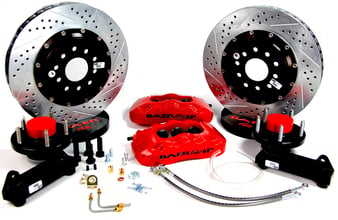

This system features the 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets and hardware are also included. The 13" Pro+ is designed to fit most 17” or larger wheels.
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
About Baer Brakes
Specs
| Axle | Front |
|---|---|
| Brand | Baer Brakes |
| Caliper | 6P |
| Caliper Color | Red |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0731 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 13.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Hose Material | Hoses Not Included |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 IN |
| Product Line | 13 Inch Pro+ |
| Product Type | 13 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 IN |
| Rotor Type | 2-Piece |
| Spindle Type | Wilwood Mustang II Pro |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with Wilwood Mustang II Pro Spindles (Stock & Drop Height) |
| Template | Q147H |
| Title | Pro+ Brake System Front |
| Wheel Lug/Bolt Pattern | 5x4.50/5x4.75 |
| Wheel Stud Size | 1/2-20" x 2.25" |
| UPC | 844165043355 |
| Part Number | 4261286R |
