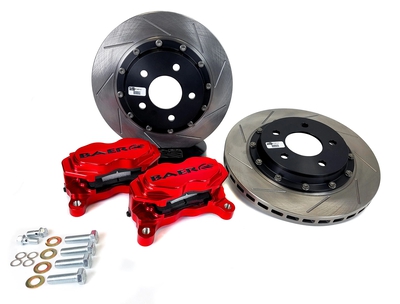

This system features the 4-piston, S4 caliper mounted to a 12" x 1.100" 2 piece, slotted rotor and uses the popular DR1/HB100 pad type. The slot only rotors are mounted to 6061 billet aluminum hats using NAS high grade stainless hardware and come pre-assembled. All additional mounting hardware is also included. The SS4+ 2.0 Deep Stage system was designed to allow consumers to push the limits at the strip, yet still have a system that can be driven on the street. The SS4+ 2.0 Deep Stage system fits many 15in and larger wheels. NOTE: This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise. Drag Race systems come standard in Clear and Fire Red caliper colors.
Features:
- All the benefits of our larger brake systems just in a smaller package to fit 15" wheels
- Fits most all beadlock wheels
- Designed specifically for heavy, fast cars, Can be used on the street
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- 2-Piece Slot Only Rotor w/Billet Aluminum Hat
Specs
| Applications | Ford Mustang 15-23 |
|---|---|
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | S4 |
| Caliper Color | Clear |
| Disc Brake Caliper (Front) Piston Quantity | 4 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | DR1 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 12.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Hose Material | Hoses Not Included |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 15 IN |
| Product Line | SS4+ Deep Stage Front |
| Product Type | 12 Inch SS4+ Deep Stage Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 IN |
| Rotor Type | 2-Piece |
| Surface Type | Slotted |
| System Notes | NOTE: This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise. |
| System Weight 38.8lbs | |
| Template | S096E |
| Title | SS4+ Deep Stage Front |
| Wheel Lug/Bolt Pattern | 5x4.50 |
| UPC | 844165054146 |
| Part Number | 4261560C |
