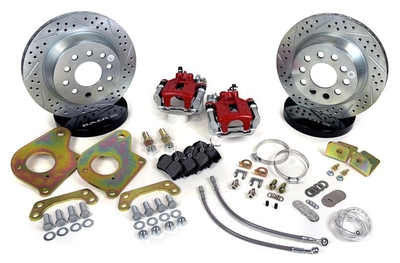

This Baer Classic system features a single piston floating caliper mounted to an 11.65" 1-piece slot, drill, zinc plated rotor. The Classic system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings. The Classic Series is the most cost effective, full feature drum to disc conversions available. The 11.65" Classic system fits some 15" and most 16" or larger wheels.
Features:
- Modern Single-Piston Caliper w/Integral Park Brake
- Red Powder Coated Finish
- Slot, Drilled, Zinc Plated Rotor
- Stainless Braided Brake Hoses
- Uses Common FMSI D0627 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Specs
| Applications | GM G-Body 78-88 |
|---|---|
| Axle | Rear |
| Box Count | 1 |
| Brand | Baer Brakes |
| Caliper | 1 Classic |
| Caliper Color | Red |
| Category | Brakes |
| Disc Brake Caliper (Front) Type | Floating |
| Disc Brake Pad FMSI Number | D0627 |
| Disc Brake Rotor (Front) Construction | Vented |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Saginaw 10 Bolt C-clip (BIH) Drum Brake Housing Ends |
| Hose Material | Stainless Steel |
| Min Wheel Dia (verify using template) | 15 IN |
| Product Line | Classic |
| Product Type | 11.65 Inch Classic Rear Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 11.650 IN |
| Rotor Surface | SDZ |
| Rotor Thickness | .705 IN |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits OE 10 Bolt Saginaw Drum Brake Rear End |
| Template | V107I |
| Title | Classic Series Rear Brake Kit |
| Wheel Lug/Bolt Pattern | 5x4.50 |
| 5x4.75 | |
| UPC | 090127854969 |
| Part Number | 4302561R |
