11" SS4+ Brake Sys Frt Slvr Mustang II
Fits Ford Mustang II Spindles (Also fits Heidts Mustang II Spindles)
Overview

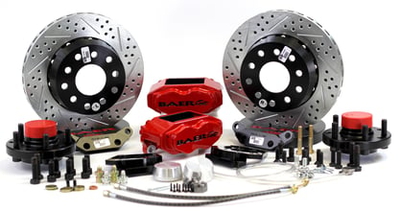

This system features the 4-piston, S4 caliper mounted to a 11", 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets and hardware are also included. The 11" SS4+ is designed just like Baer's larger systems, but in a smaller package for 15" wheels.
Features:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor
About Baer Brakes
Specs
| Axle | Front |
|---|---|
| Brand | Baer Brakes |
| Caliper | S4 |
| Caliper Color | Silver |
| Disc Brake Caliper (Front) Piston Quantity | 4 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | DR1 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 11.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Hose Material | Hoses Not Included |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 15 IN |
| Product Line | 11 Inch SS4+ |
| Product Type | 11 Inch SS4+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.020 IN |
| Rotor Type | 2-Piece |
| Spindle Type | Mustang II |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with Ford Mustang II Spindles (Stock & Drop Height), Also Fits Heidts Mustang II Spindles |
| Template | S125A |
| Title | S4 Brake System Front |
| Wheel Lug/Bolt Pattern | 5x4.50/5x4.75 |
| Wheel Stud Size | 1/2-20" x 2.25" |
| UPC | 844165044420 |
| Part Number | 4261360S |
