11" Clsc Brake Sys Frt Red 55-68 Chevy
Fits 55-68 Chevy Full Size Passenger Car OE Spindles
Overview

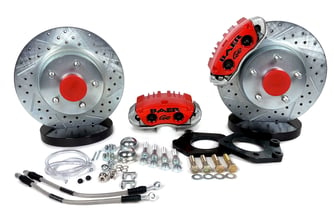

This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 11", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware. The 11" "Classic" system fits select 15" or larger wheels. **Widens track width approx. 1" per side.** **IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
Features:
- Aluminum, 2-Piston, Pad Guided Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0412 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
About Baer Brakes
Specs
| Applications | Chevy Full Size Pass Car 55-68 |
|---|---|
| Axle | Front |
| Box Count | 2 |
| Brand | Baer Brakes |
| Caliper | 2 PGC |
| Caliper Color | Red |
| Disc Brake Caliper (Front) Type | Floating |
| Disc Brake Pad FMSI Number | D0412 |
| Disc Brake Rotor (Front) Construction | Vented |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Spindles |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 15 IN |
| Product Line | Classic |
| Product Type | 11 Inch Classic Front Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 11.000 IN |
| Rotor Surface | SDZ |
| Rotor Thickness | 1.035 IN |
| Sale Category | Brakes |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Bolts directly to stock spindles |
| Increases Track Width Approx. 1" Per Side | |
| Template | D194A |
| Title | Classic Series Front Brake Kit |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 7/16-20 |
| UPC | 090127853870 |
| Part Number | 4301594R |
