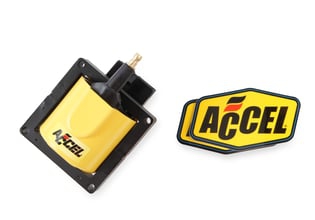

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, and crisper throttle response. Compatible with late model Ford EEC-IV computer controlled ignition system equipped with a TFI distributor. Direct OEM replacement. Can also be used with an ACCEL, Mallory, Crane, Holley or MSD capacitive discharge ignition system. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy efficiency and resists corrosion better than aluminum. High dielectric strength ACCEL Yellow over-molded housing.
Features:
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Standard Motor Products SMP Fd-478
- MSD 5527
Specs
| Application | Ford |
|---|---|
| Brand | ACCEL |
| Category | Ignition Coils |
| Color | Yellow |
| Emission Code | 2 |
| Maximum Voltage | 48,000 volts |
| Part Type | Ignition Coil |
| Peak Increase in Energy vs. OE | 37% |
| Peak Increase in Voltage vs. OE | 23% |
| Primary Resistance | 0.2 Ohms |
| Product Type | Ignition Coils |
| Quantity | 1 |
| Quantity Per Pkg. | 1 |
| Secondary Resistance | 8.8 k Ohms |
| Sub Category | Ignition Coil |
| Turns Ratio | 132:1 |
| Warranty | Limited 90 Day Warranty |
| Weight | 2.0000 |
| UPC | 743047760925 |
| Part Number | 140012 |
Emissions
2
This part is legal for sale and use on Emissions Controlled Vehicles when used in accordance with the manufacturers application guide because it is a direct or consolidated replacement part.
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
