Features & Benefits
- 40,000 volts.
- Available chrome plated or black for that "stock look".
- For use with inductive ignition systems.
- 1.5 or 3.0 Ohm primary resistance values available.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)

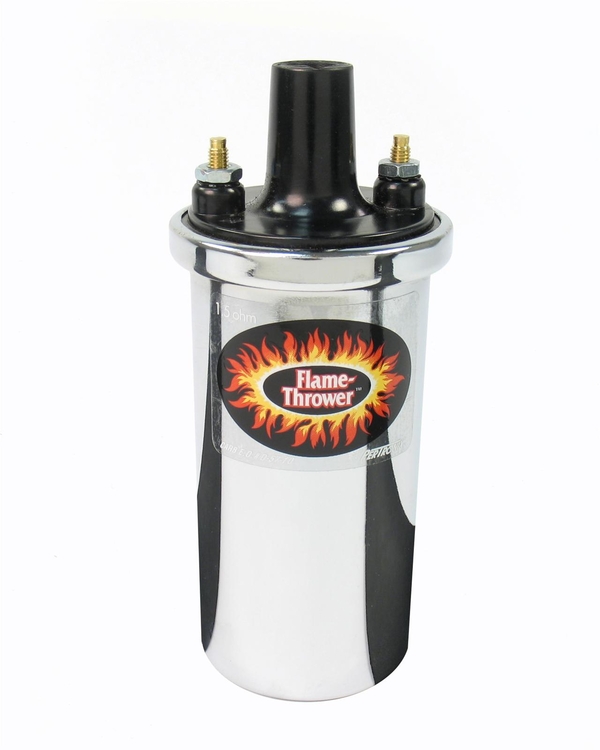

The Flame Thrower canister coil is designed to mate with the Ignitor Electronic Conversion Kit, but can benefit virtually any distributor type inductive systems. Higher voltage allows larger spark plug gap for added power, smoother response, and improved fuel economy.

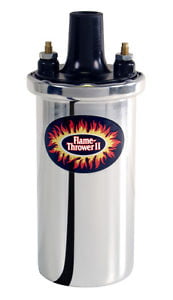

The Flame-Thrower canister style coil has been engineered to complement our Ignitor Electronic Ignition Conversion Kits and Plug n’ Play Distributors. Choose from the Flame-Thrower, Flame-Thrower II, and the Flame-Thrower III depending upon system voltage and resistance. Oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in off-road vehicles and boats.
Specifications
| Maximum Voltage | 40000 |
|---|---|
| Primary Resistance | 1.5 Ohms |
| Voltage | 12 |
| Color | Chrome |
| Finish | Polished |
| Coil Shape | Round |
| Maximum Diameter | 2.15 Inches |
| Overall Height | 6 Inches |
| Mounting Position | Vertical |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Ballast Resistor Included | No |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Mount Type | Circular Bracket |
| Requires External Resistor | No |
| Primary Inductance | 6.4 |
| Secondary Resistance | 9000 Ohms |
| Turns Ratio | 100:1 |
| Grade Type | Performance |
