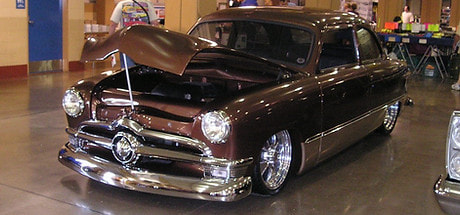

1949-1951 Ford Car Complete Rolling Chassis

This item is made to order and has an approximate lead time of 3 Months from the time an order is placed. 50% of the payment is due upfront as a deposit.

Fatman manufactures a complete 1949-1951 Ford Car Chassis with plenty of upgrade options to make your car perform like you want!

Our frames are built using heavy .188 wall rectangular tubing for more strength and lower cost! They are made to follow the original shape and form to fit with the original body and core support mounts. Expect a 2-3 inch drop from stock with our standard chassis and standard spindles. Air ride, and 2 inch dropped spindles are options to slam the car. Clearance for 3 inch exhaust is provided while maintaining full strength and good ground clearance. Call, email, or check out the listing for a builder's guide!

Roller Chassis Includes:

• 4”x4”x.188” and 3”x 3”x.188  tubing frame rails, 1”x2”x.120” mandrel-bent crossmember

• Radiator and bumper mount holes, body mounts included

• Mustang II-based front crossmember made of 3”x4”x.250” tubing and newly redesigned upper mounts for stage 3 or stage 5

• Engine and transmission mounts for small block Ford or Chevy, with others available

• Fat Man stage 3 front suspension, including black powder-coated steel tubular control arms, premium single adjustable coilovers, Mustang II-based spindles with 11” OE-style disc brake assembly, power rack and pinion steering, and a front anti-sway bar

• Our Pro-link parallel 4-bar rear suspension with premium single adjustable coilovers and a rear anti-sway bar

• New Moser Engineering 9” Ford rear end housing with 31 spline axles, and OEM style disc brakes

• Assembled and coated with a rust inhibitor

• Wilwood big brake kits are available that use aluminum hubs, 4 piston aluminum calipers.

NOTE: These are standard options included in the pricing. Many of these options are upgradeable.

Stage 2 Includes:

• Tubular control arms
• Spring towers
• Manual rack and pinion
• Forged Steel Caliper Brackets w/ Bolts
• Big Bore Metric Brake Calipers
• Bearings, Seals, and Dust Caps
• Extra large brake packages (11" Ford or GM)
• Mustang II Raised Spindles, tock height, or 2" dropped spindles
• Spindle Nut Kit
• Coil Springs
• Gas Shocks
• Rack Bolts
• Rack Bushings and bolts and spacers
• Tie Rod Ends
• Upper A-Arm T-Bolts

Stage 3 Includes:

• Tubular control arms
• Spring towers
• Manual rack and pinion
• Forged Steel Caliper Brackets w/ Bolts
• Big Bore Metric Brake Calipers
• Bearings, Seals, and Dust Caps
• Extra large brake packages (11" Ford or GM)
• Mustang II Raised Spindles, tock height, or 2" dropped spindles
• Spindle Nut Kit
• Adjustable Ridetech HQ Series Coilover Shocks
• Rack Bolts
• Rack Bushings and bolts and spacers
• Tie Rod Ends
• Upper A-Arm T-Bolts

Stage 4 Includes:

• Tubular control arms
• Spring towers
• Manual rack and pinion
• Forged Steel Caliper Brackets w/ Bolts
• Big Bore Metric Brake Calipers
• Bearings, Seals, and Dust Caps
• Extra large brake packages (11" Ford or GM)
• Mustang II Raised Spindles, tock height, or 2" dropped spindles
• Spindle Nut Kit
• Firestone Air Springs w/ OEM Style Shocks
• Rack Bolts
• Rack Bushings and bolts and spacers
• Tie Rod Ends
• Upper A-Arm T-Bolts

Stage 5 Includes:

• Tubular control arms
• Spring towers
• Manual rack and pinion
• Forged Steel Caliper Brackets w/ Bolts
• Big Bore Metric Brake Calipers
• Bearings, Seals, and Dust Caps
• Extra large brake packages (11" Ford or GM)
• Mustang II Raised Spindles, tock height, or 2" dropped spindles
• Spindle Nut Kit
• Ridetech HQ Series Shockwave Adjustable Airbags
• Rack Bolts
• Rack Bushings and bolts and spacers
• Tie Rod Ends
• Upper A-Arm T-Bolts
