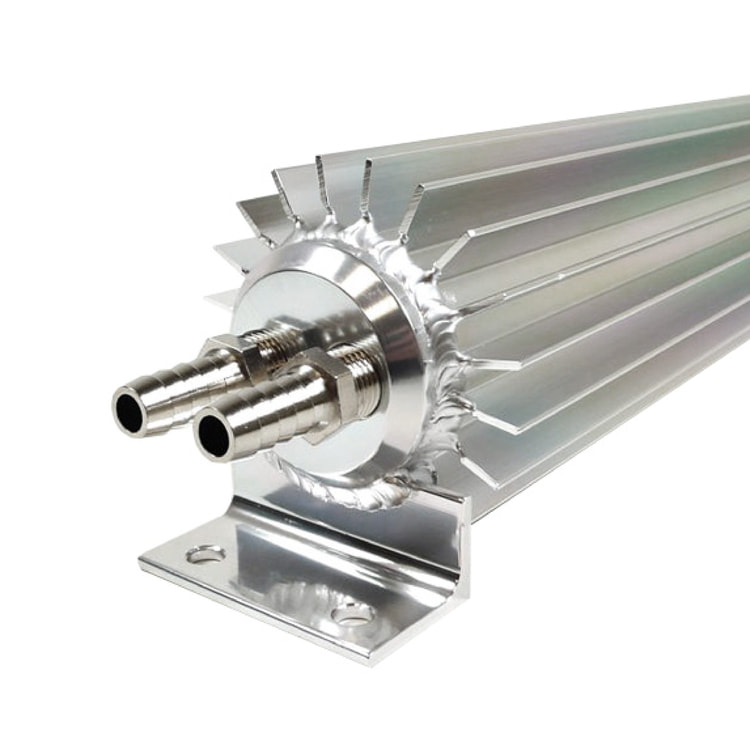

12″ Dual Pass Transmission Cooler – Silver

Overview

Our dual pass coolers feature a heat sink design that is engineered to cool your automatic transmission fluid with maximum efficiency with no direct air flow required. Made out of lightweight, high quality aluminum and precision welded for durability and a leak proof seal. The compact 3″ core diameter with the inlet/outlet ports on the same side gives you multiple mounting options where space is limited. Features 1/4″ NPT ports and includes 3/8″ hose barb fittings. Available in a silver and black anodized finishes in multiple length options.

Overall Dimensions (Includes Mount Brackets):

• 3″ W x 3-1/4″ H x 14-3/8″ OAL

Mounting Dimensions (Center-To-Center):

• 13-3/4″ L x 1-3/8″ W

Specifications:

• 14 oz. Capacity
• 1/4″ NPT Inlet/Outlet Ports
• Includes (2) 3/8″ Hose Barb Fittings
• 12″ Core Length x 3″ Core Diameter
• 150 PSI Pressure Rating
