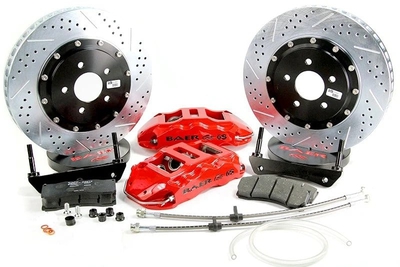

Baer Brakes 14" Extreme+ Front Brake Kit, Silver, SDZ
Fits 1973-87 Chevy/GMC 2WD 1/2 Ton Trucks w/DSE Forged Aluminum 2.5" Drop Modular Spindles
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
Applications GM C10 Trucks 60-87 Axle Front Brand Baer Brakes Caliper 6S Caliper Color Silver Disc Brake Caliper (Front) Piston Quantity 6 Disc Brake Caliper (Front) Type Fixed Disc Brake Pad FMSI Number D1247 Disc Brake Rotor (Front) Construction Vented Disc Brake Rotor (Front) Outside Diameter 14.000 IN Emission Code 6 Export Description Brake Components Fitment Notes w/DSE Forged Aluminum Modular Spindles Grade Type Performance Hose Material Stainless Steel Lug Count 5 Lug Min Wheel Dia (verify using template) 18 IN Product Line 14 Inch Extreme+ Product Type 14 Inch Extreme+ Front Brake Kit Prop 65 (C, R or CR) CR Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov Prop 65 - Short Label WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov Prop 65 Yes/No Yes Rotor Thickness 1.250 IN Rotor Type 2-Piece Spindle Type DSE Forged Alum Modular 2.5" Drop Spindles Spindles Included No Surface Type Slotted, Drilled & Zinc Plated System Notes Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included. Template N072P Title Extreme+ Brake System Front Wheel Lug/Bolt Pattern 5x4.75/5x5.00 UPC 090127853863 Part Number 4301588S Tech Resources - 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
No reviews currently exist for this item.
